GMSK Shield
The node adapter is built around two major components. That is the GMSK modem chip (CMX589) and the controller (ATmega) that takes communication to the host (PC or Raspberry PI) for his account.
The modem supports D-Star hotspot and repeater functionality, half and full duplex so. The transceiver get connected to the present (mini DIN) 9600 bps packet connection.
– Fits on Arduino UNO and MEGA 1280/2560
– Standard mini Din /ps2 9600 packet connector
– half and full duplex mode support
– D-Star
Block diagram
Mini Din Info : Diagram
Dualband Radio Hotspot Shield

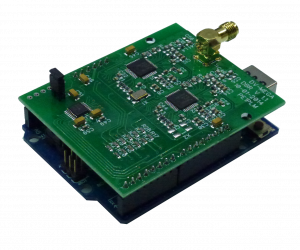

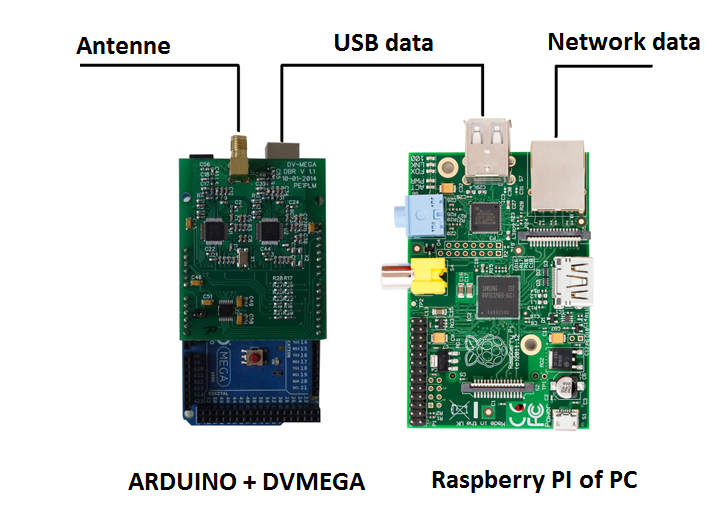

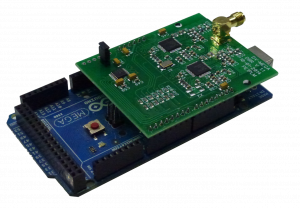

With the DVMEGA Dual Band Radio and ARDUINO board basis you quickly make a 10 mW hotspot for D-Star, DMR or Fusion which operates on VHF or UHF.
– Fits on Arduino UNO and MEGA 1280/2560
– Dualband VHF/UHF radio
– 10 mW output power
– SMA antenna connector
– D-Star, DMR and Fusion
Block diagram
Firmware downloads
| Function | Photo | Firmware | Links | Manual |
|---|---|---|---|---|

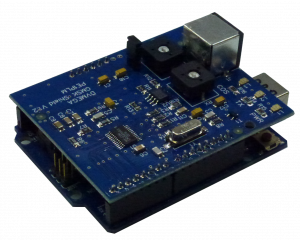

| Arduino UNO based GMSK shield for G4KLX |  |
DVMEGA GMSK UNO V1.51 | XLoader | Manual |

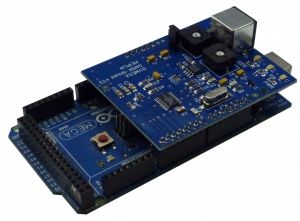

| Arduino MEGA based GMSK shield for G4KLX |  |
DVMEGA GMSK MEGA V1.51 | XLoader | Manual |
| BlueDV-MMDVMhost for Arduino UNO. Support for D-Star, Fusion and DMR auto mode. Dualband Radio |  |
Version 3.19 Version 3.26 |
XLoader | Manual |
| BlueDV-MMDVMhost for Arduino MEGA. Support for D-Star, Fusion and DMR auto mode. Dualband Radio |  |
Version 3.19 Version 3.26 |
XLoader | Manual |
